PRINT BOLDER AND BIGGER WITH EDUCATION RESOURCES EVERY STEP OF THE WAY.

Our largest 3D printer offering with printer training, student curriculum and filament for the whole semester included.

DRIVE INNOVATION WITH BIGGER POSSIBILITIES

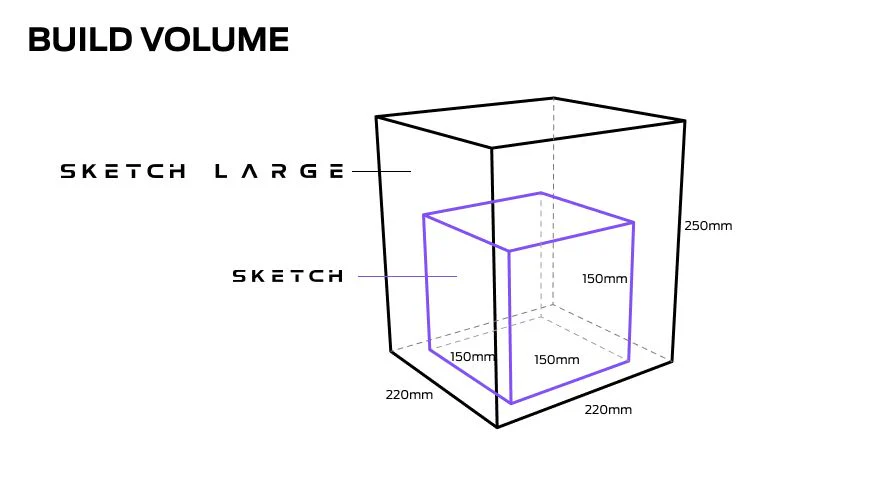

Leverage the printer’s full print chamber and print up to 8.6” in length, 7.8” in width and almost 10” in height!

With a bigger printer comes the ability to print larger projects. From printing different bridge structures for physics, printing the skull of t-rex for biology class, or leveraging 3D printing for problem-solving projects.

Let students design as big as their imagination.

STREAMLINING PRINTING FOR THE WHOLE CLASSROOM

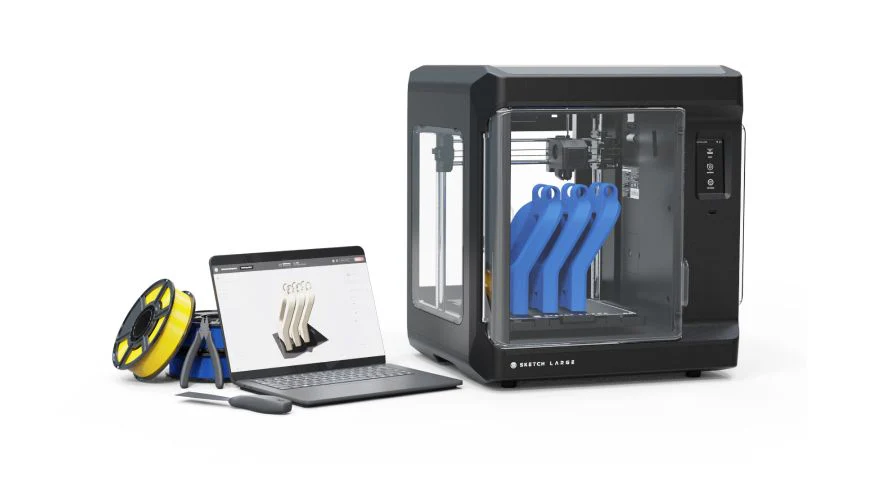

With the SKETCH Large you can skip the 3D printing bottleneck and print up to 10 projects on a build plate at the same time, giving you your time back in the classroom and students more opportunities to 3D print.

Get more printed in less time, with the SKETCH Large you can load up the build plate with 10 projects at a time.

MORE THAN JUST A 3D PRINTER

KICKSTART 3D PRINTING ON DAY ONE

With over 15 hours of student curriculum accessible online, our Certification program gives your students the tools to build and strengthen their design thinking skills with 3D printing.

CURRICULUM THAT’S READY TO GO

Get access to community-driven lesson plans reviewed & approved by MakerBot Education. Find lesson plans designed for grade levels and subjects applicable to your classroom and curriculum.

CLASSROOM-READY SOFTWARE

Turn your students’ digital models into 3D prints with MakerBot CloudPrint, a cloud-based software that requires no software installation or student account creation.

TECH SPECS

PRINTING

Print Technology	Fused deposition modeling (FDM)
Build Speed	Max Print Speed: Up to 150 mm/sec
Layer Resolution	Maximum Capability: 100 - 400 microns Print Mode tuned for: 200 microns to provide an optimal balance of high surface quality and quick print time
Maximum Build Volume	220mm x 200mm x 250mm [8.66in x 7.87in x 9.84in]
Supported Materials	MakerBot PLA for SKETCH
Maximum Heated Build Plate Temperature	110C [230F]
Operating Volume	50 dB
Recommended Print Mode	Balanced

HARDWARE

Print Heads	1 (user replaceable)
Nozzle Diameter	0.4 mm
Nozzle Material	Stainless Steel (SU304)
Sensors	Filament Detection and Auto Load/Unload
Display	109mm color touch screen [4.3in color touch screen]
Build Plate	Heated with removable, flexible build surface
Build Surface	Grip Surface
Camera Resolution	2 megapixels
Ambient Operating Temperature	15C to 30C [59F to 86F] 10% to 70% RH non-condensing
Storage Temperature	0C to 55C [32F to 131F]
Filter	Particle Filter

SIZE & WEIGHT

Product Dimensions	547mm (H) x 535mm (W) x 470mm (D) [21.54in (H) x 21.07n (W) x 18.50in (D)]
Product Weight	23.2kg [51.15lb]
Shipping Weight	32.5kg [71.65lb]
Shipping Box	675mm (H) x 569mm (W) x 591mm (D) [26.57in (H) x 22.40in (W) X 23.27in (D)]

SOFTWARE

Software Bundle	MakerBot CloudPrint
File Types	MakerBot (.makerbot), STL (.stl) .catpart .dae .gib .iges .ipt .obj .par .sab .sat .sldprt.Thing .wrl x_t .3mf
Recommended Browser	Latest version of Chrome, Edge, Firefox, or Safari

SKETCH Classroom Bundles; including additional printers, materials and warranty are also available!
Get started by requesting a quote below:

3D Printers

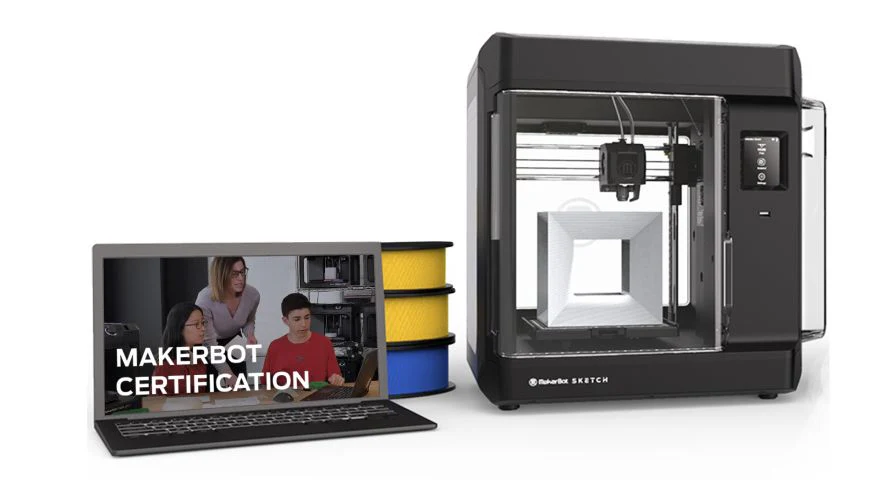

MakerBot SKETCH

MakerBot SKETCH LARGE

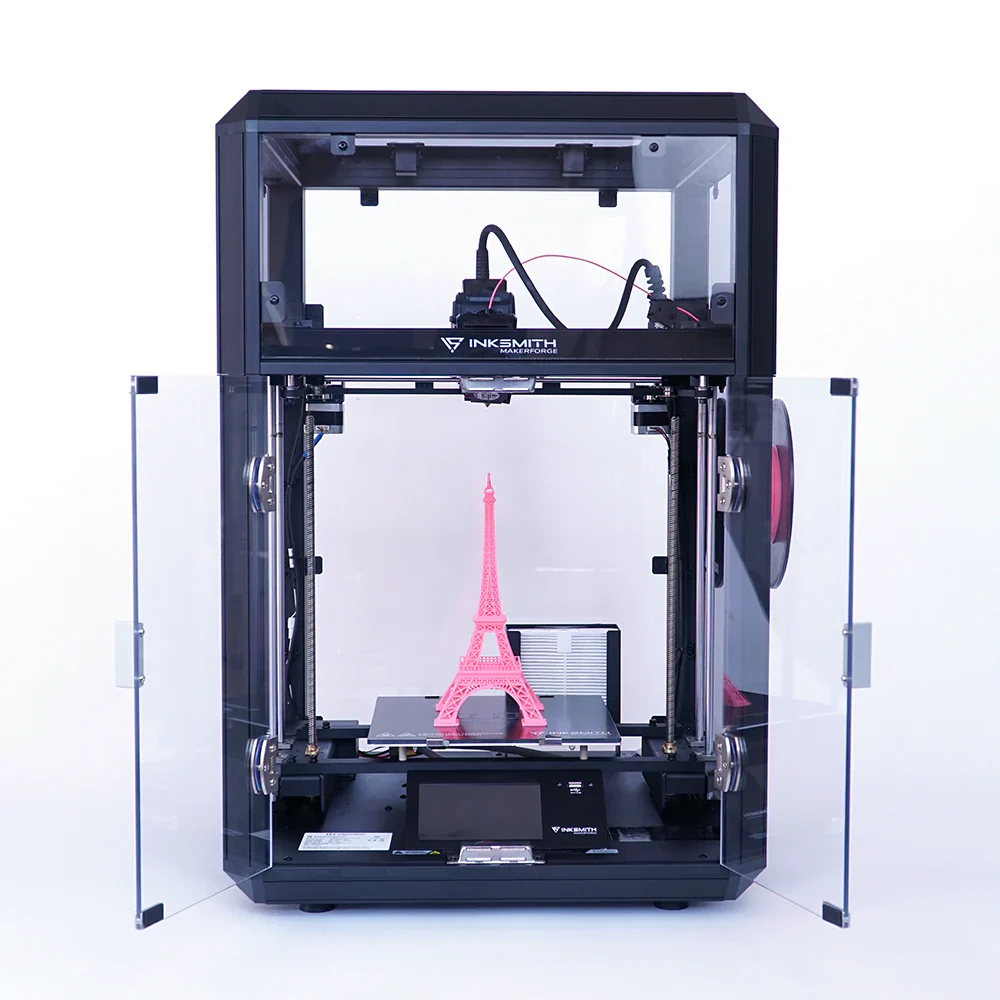

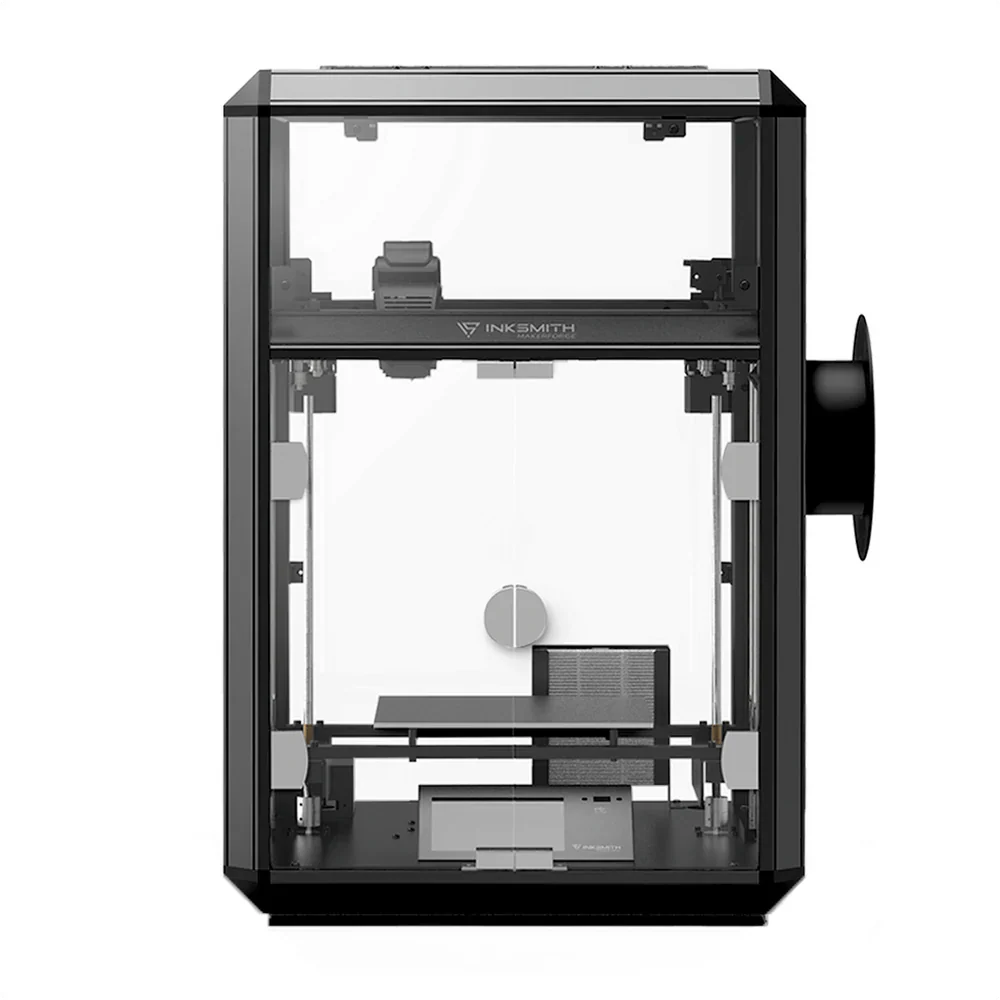

Makerforge 3D Printer

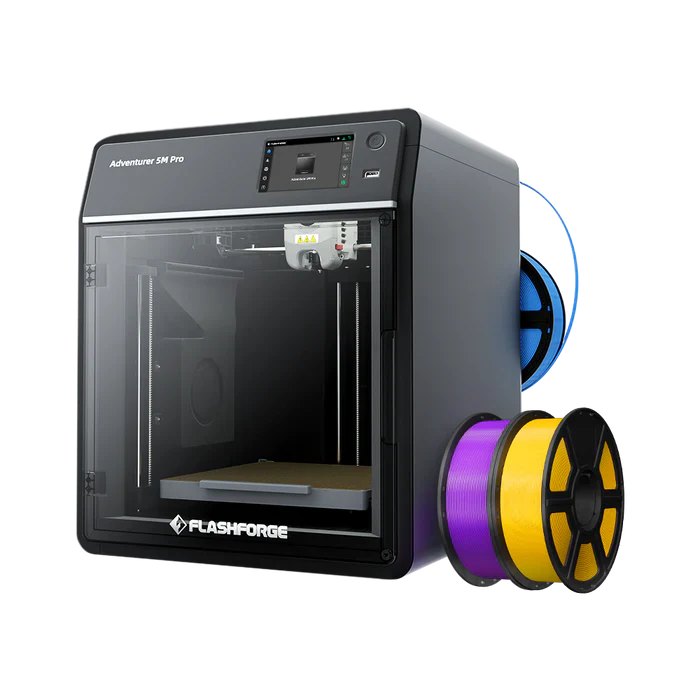

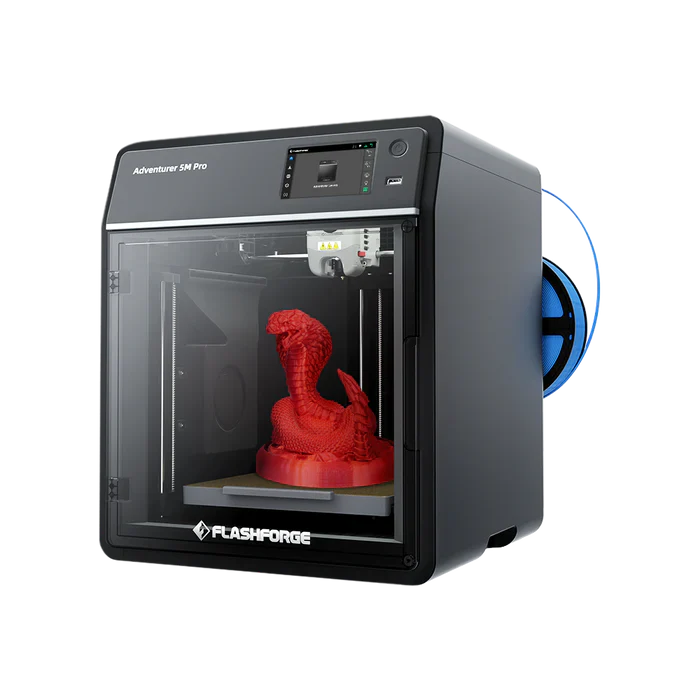

Flashforge Adventurer 5M Pro

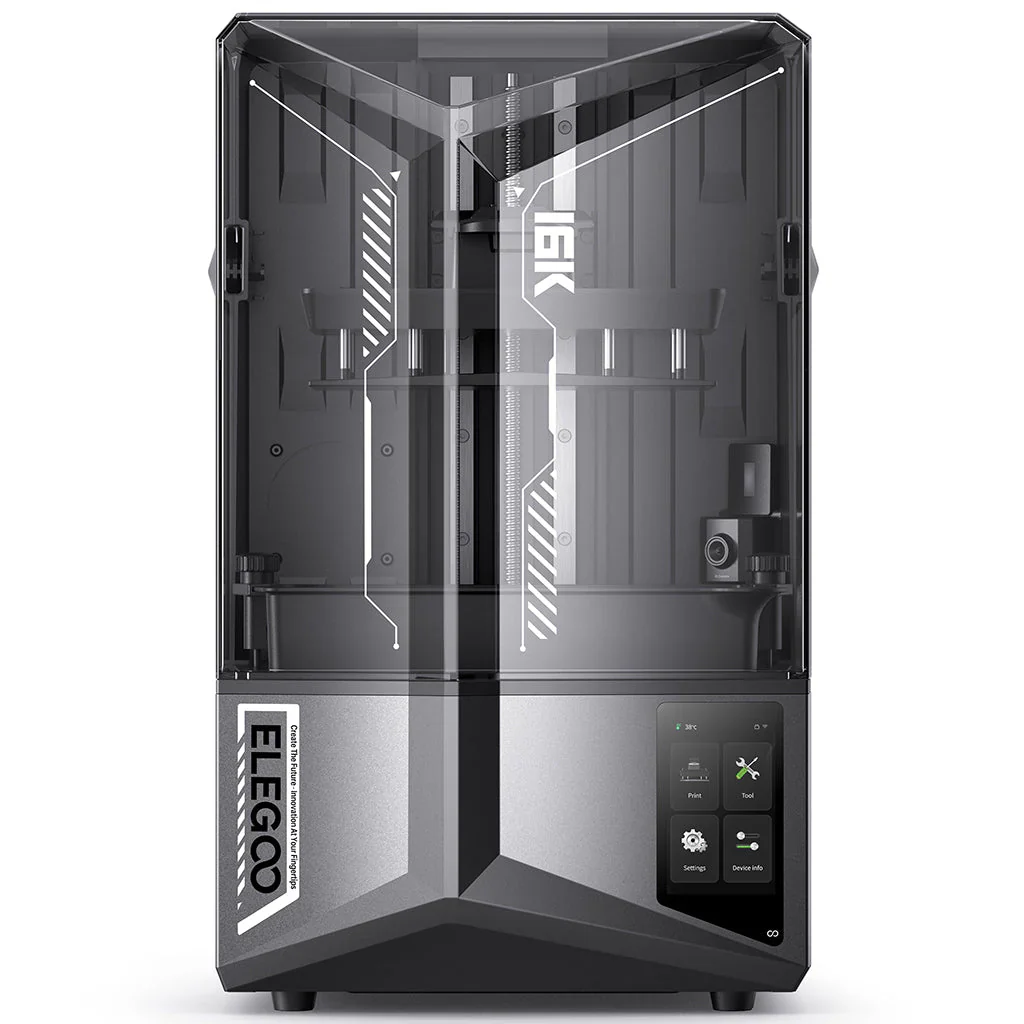

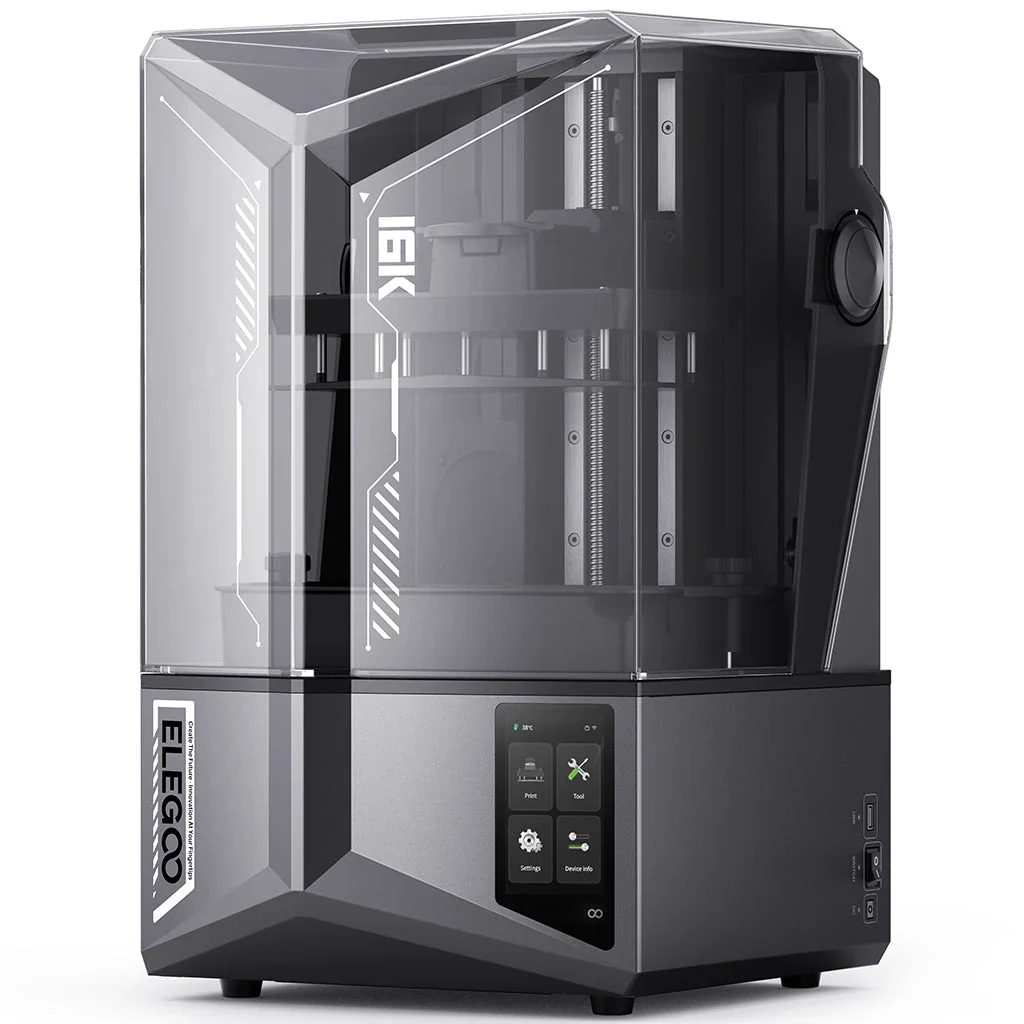

Elegoo Saturn 4 Ultra 16K Resin 3D Printer

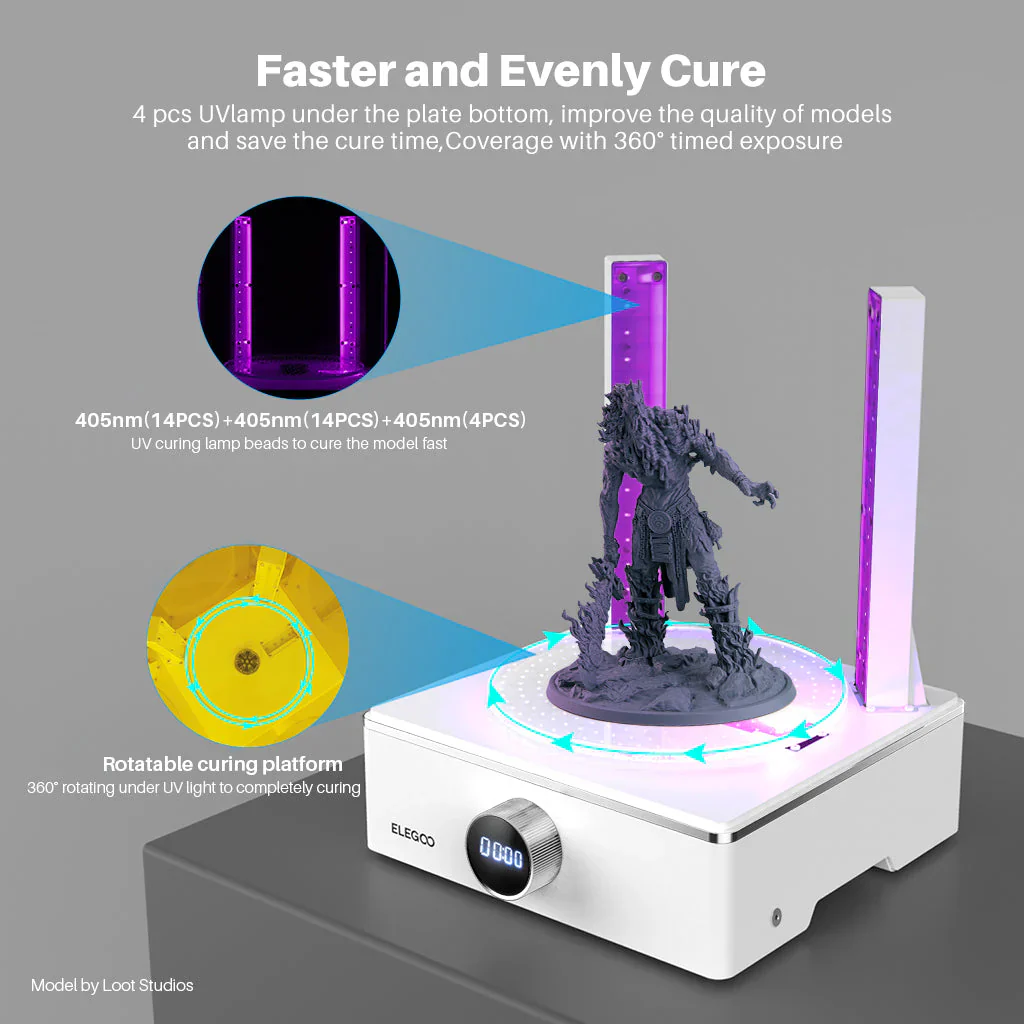

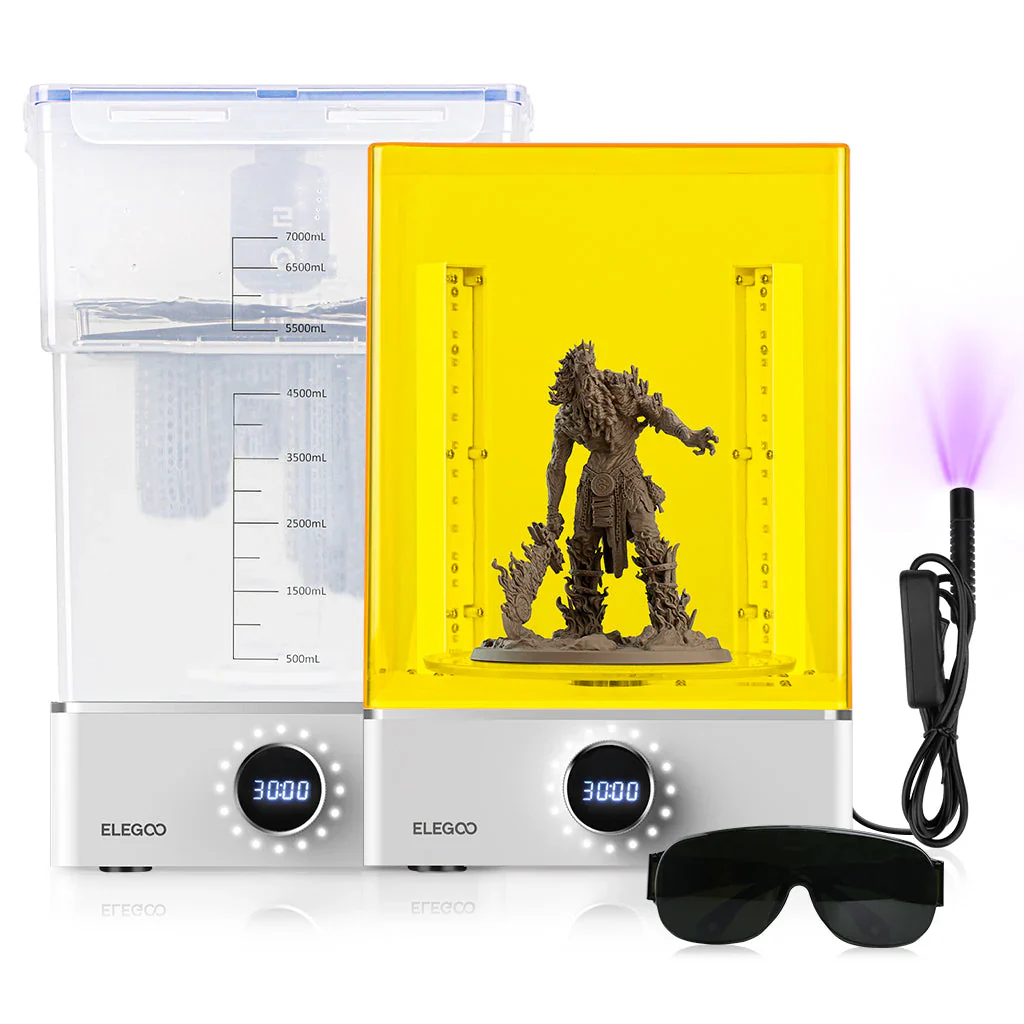

Elegoo Mercury XS Bundle
